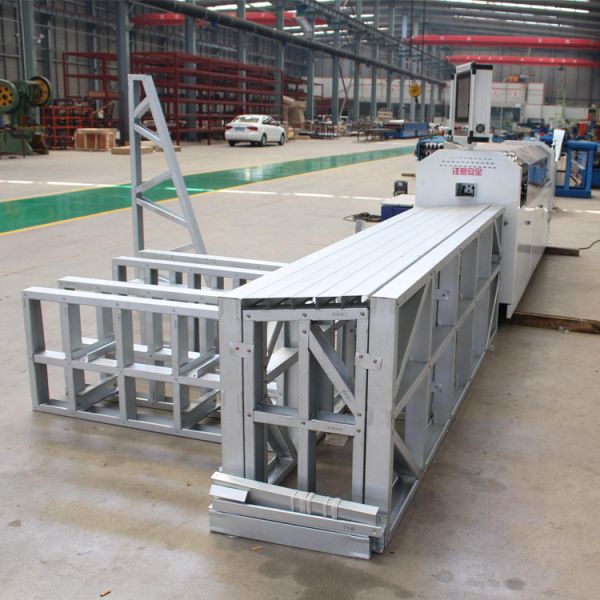

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

  • 1
  • 2
  • 3

Brand Name : FMS

Model Number : C89

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 20' FLC

Product Name : C89 Roll Forming Machine

Dimension(L*W*H) : 6800 mm*1000 mm*1500 mm

Raw Material : Galvalume, Galvanized

Working Speed : 20 m/min - 25 m/min

Color : white

Delivery : 45 Working Days

Motor power : 7.5 KW

Container load : 20 feet

Pow supply : 380V, 60Hz, 3Ph

Profile : C89

Control System : PLC

Cutting Length Accuracy : ±2mm

Cutting System : Hydraulic

Material Thickness : 0.8-1.2mm

Voltage : 380V

Contact Now

High speed Stud And Track Roll Forming Machine with flying cutting system

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components—the studs, tracks, and channels—used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings.

This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.

Specification

No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.5-1.2 mm
3 Working Speed 20-40 m/min
4 Roller Station 9 Raws
5

Dimension (L*W*H)

 5800 mm*1000 mm*1500 mm
6 Machine Weight 2000 KG
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 7.5 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard

Advantage

Easy to operate long warranty

Payment terms

40% in advance as down payment by TT

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
